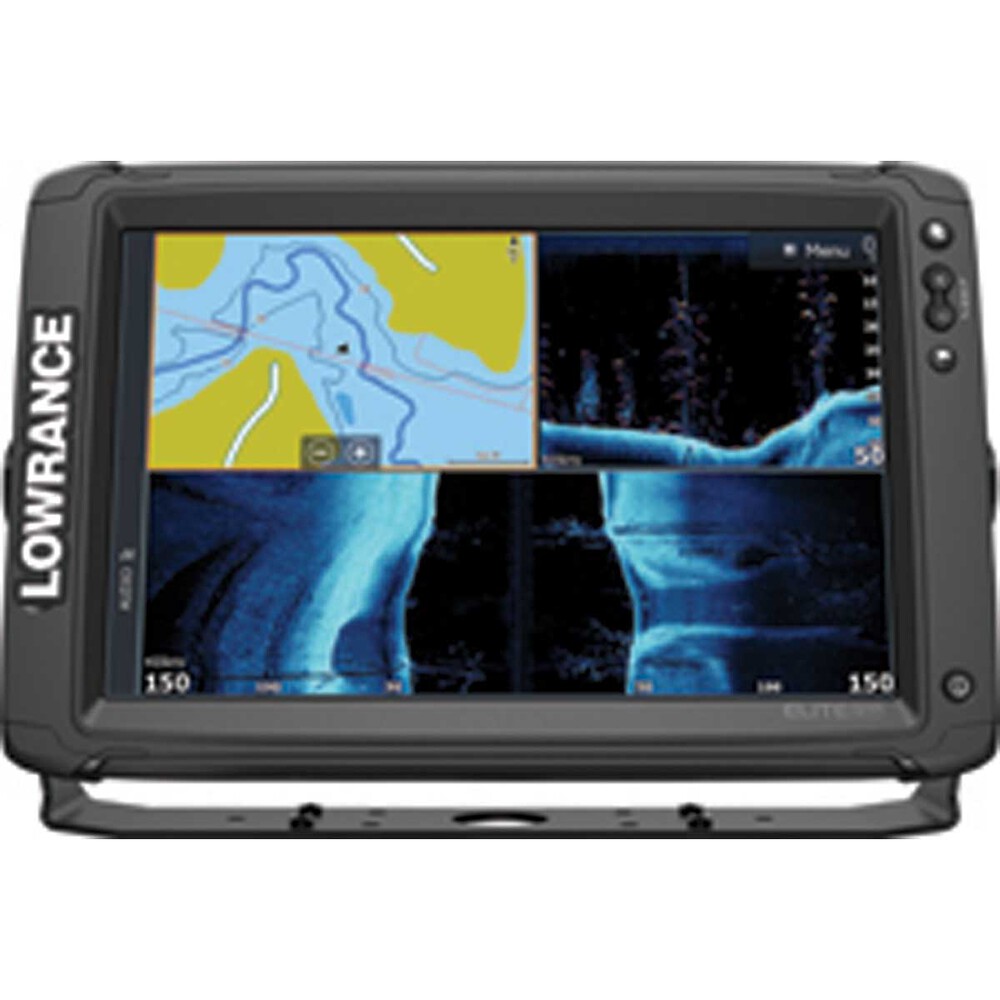

Lowrance Elite ti2 12 Combo Aus/nz No xd

Brand Lowrance Country of Manufacture Mexico Physical Dimensions 328mmW x 224mmH x 89mmD Screen Size 12" Display Resolution 1280W x 800V pixels Screen Brightness 1200 nits IPX Water Rating IPX7 Voltage 10-17vDC Wattage 12w Transmit Power 500w RMS Ethernet Ports for multiple screens None Wireless Network Yes NMEA0183 Compatibility Yes NMEA2000 Compatibility Yes Mounting Options Bracket Mount and Flush-mount WiFi Connectivity Builtin Expansion Card Slot 1 x microSD Warranty 1 Year Accepted Map Cards Navionics+ Waypoints 3000 Routes 100 Track Log 100 Trails / Up to 10,000 points Sonar Compatible Yes Supports AIS (tracks target ships position) Yes Tide Tables (from map card option) Yes Trolling Motor Compatible Yes Audio System Comaptible Yes Fusion-Link Compatible Marine Radio Support Yes Chirp Sonar Yes Operating Frequency 50KHz, 83KHz, 200KHz, 455KHz, 800KHz, Low CHIRP, Med CHIRP, High CHIRP Down Imaging (Transducer Dependant) Yes Useable Depth Down Imgaging 50m+ Sonar Useable Depth (T/D & Frequency Dependant) 70m+ Side Imaging (Transducer Dependant) Yes Sonar Track Back Yes Output Power: RMS 500w Water Temperature Yes

12" Single-touch display 1280 x 800 Pixels Active Imaging 3-1 (CHIRP/SideScan/Downscan) ready - can give even better clarity than StructureScan HD and allowing multiple angle views to be shown all at once Active Imaging 2-1 ready Built in broadband CHIRP Sounder FishReveal brings extra distinction of Fish targets, highlighting them on the screen to visually separate from structure Enhanced surface clarity lets you see more targets near the surface C-MAP Genesis Live compatible - Letting you custom map your favourite spots or even entire lakes as you choose Pre-loaded with C-MAP Australia, New Zealand charts Quick Access Control Bar provides one–touch access to system controls Touchscreen control of Power-Pole® anchors, MotorGuide® Xi5 Trolling Motor (requires ELM950 MotoGuide Gateway Kit option) NMEA2000 engine support NMEA0183 via ESA962 power cable option SonicHub connectivity lets you enjoy your music through the system on the water Built in wireless connectivity
